Sharp GP2Y1010AU0F - dust sensor

tad.dvor · December 26, 2017, 6:50pm

Codes for different boards and shields.
All codes only work with MQTT.

Arduino_Industrial_101.txt (1.2 KB)
EthernetShieldW5200.txt (2.0 KB)
ArduinoYun.txt (1.5 KB)
EthernetShieldW5100.txt (2.0 KB)
EthernetShieldW5500.txt (2.0 KB)
ManualConnection.txt (2.9 KB)
WiFiShield.txt (2.1 KB)
WiFi101Shield.txt (2.1 KB)

Sample from the Cayenne Dashboard.

marco_rudolph · January 1, 2019, 11:14pm

Hi,

I tried to use the WiFiShield example for the Sharp GP2Y1010AU0F in combination with a Wemos D1 mini but I run into compile errors.

In file included from C:\Users\Marco\Documents\Arduino\libraries\CayenneMQTT\src/CayenneArduinoDefines.h:127:0,

                 from C:\Users\Marco\Documents\Arduino\libraries\CayenneMQTT\src/CayenneArduinoMQTTClient.h:21,

                 from C:\Users\Marco\Documents\Arduino\libraries\CayenneMQTT\src/CayenneMQTTWiFiClient.h:21,

                 from C:\Users\Marco\Documents\Arduino\libraries\CayenneMQTT\src/CayenneMQTTWiFi.h:25,

                 from C:\Users\Marco\Documents\Arduino\GP2YDustWemosCayenne\GP2YDustWemosCayenne.ino:5:

C:\Users\Marco\Documents\Arduino\libraries\CayenneMQTT\src/DetectDevice.h:227:10: warning: #warning "Cannot detect board type" [-Wcpp]

         #warning "Cannot detect board type"

          ^

In file included from C:\Users\Marco\Documents\Arduino\libraries\CayenneMQTT\src/CayenneMQTTClient/CayenneMQTTClient.h:24:0,

                 from C:\Users\Marco\Documents\Arduino\libraries\CayenneMQTT\src/CayenneMessage.h:32,

                 from C:\Users\Marco\Documents\Arduino\libraries\CayenneMQTT\src/CayenneHandlers.h:29,

                 from C:\Users\Marco\Documents\Arduino\libraries\CayenneMQTT\src/CayenneArduinoDefines.h:128,

                 from C:\Users\Marco\Documents\Arduino\libraries\CayenneMQTT\src/CayenneArduinoMQTTClient.h:21,

                 from C:\Users\Marco\Documents\Arduino\libraries\CayenneMQTT\src/CayenneMQTTWiFiClient.h:21,

                 from C:\Users\Marco\Documents\Arduino\libraries\CayenneMQTT\src/CayenneMQTTWiFi.h:25,

                 from C:\Users\Marco\Documents\Arduino\GP2YDustWemosCayenne\GP2YDustWemosCayenne.ino:5:

C:\Users\Marco\Documents\Arduino\libraries\CayenneMQTT\src/CayenneMQTTClient/../CayenneUtils/CayenneDataArray.h:328:30: warning: type qualifiers ignored on function return type [-Wignored-qualifiers]

      const size_t getCount() const {

                              ^

In file included from C:\Users\Marco\Documents\Arduino\libraries\CayenneMQTT\src/CayenneMQTTWiFiClient.h:21:0,

                 from C:\Users\Marco\Documents\Arduino\libraries\CayenneMQTT\src/CayenneMQTTWiFi.h:25,

                 from C:\Users\Marco\Documents\Arduino\GP2YDustWemosCayenne\GP2YDustWemosCayenne.ino:5:

C:\Users\Marco\Documents\Arduino\libraries\CayenneMQTT\src/CayenneArduinoMQTTClient.h: In member function 'void CayenneArduinoMQTTClient::connect()':

C:\Users\Marco\Documents\Arduino\libraries\CayenneMQTT\src/CayenneArduinoMQTTClient.h:59:63: warning: deprecated conversion from string constant to 'char*' [-Wwrite-strings]

    if (!NetworkConnect(&_network, CAYENNE_DOMAIN, CAYENNE_PORT)) {

                                                               ^

In file included from C:\Users\Marco\Documents\Arduino\libraries\CayenneMQTT\src/CayenneMQTTWiFiClient.h:21:0,

                 from C:\Users\Marco\Documents\Arduino\libraries\CayenneMQTT\src/CayenneMQTTWiFi.h:25,

                 from C:\Users\Marco\Documents\Arduino\GP2YDustWemosCayenne\GP2YDustWemosCayenne.ino:5:

C:\Users\Marco\Documents\Arduino\libraries\CayenneMQTT\src/CayenneArduinoMQTTClient.h: At global scope:

C:\Users\Marco\Documents\Arduino\libraries\CayenneMQTT\src/CayenneArduinoMQTTClient.h:292:7: warning: unused parameter 'channel' [-Wunused-parameter]

  void syncVirtual(int channel)

       ^

In file included from C:\Users\Marco\Documents\Arduino\libraries\CayenneMQTT\src/CayenneMQTTWiFi.h:25:0,

                 from C:\Users\Marco\Documents\Arduino\GP2YDustWemosCayenne\GP2YDustWemosCayenne.ino:5:

C:\Users\Marco\Documents\Arduino\libraries\CayenneMQTT\src/CayenneMQTTWiFiClient.h: In member function 'void CayenneMQTTWiFiClient::begin(const char*, const char*, const char*, const char*, const char*)':

C:\Users\Marco\Documents\Arduino\libraries\CayenneMQTT\src/CayenneMQTTWiFiClient.h:49:33: error: invalid conversion from 'const char*' to 'char*' [-fpermissive]

    WiFi.begin(ssid, wifiPassword);

                                 ^

In file included from C:\Users\Marco\Documents\Arduino\libraries\CayenneMQTT\src/CayenneMQTTWiFi.h:23:0,

                 from C:\Users\Marco\Documents\Arduino\GP2YDustWemosCayenne\GP2YDustWemosCayenne.ino:5:

C:\Users\Marco\Documents\Arduino\libraries\WiFi\src/WiFi.h:79:9: error:   initializing argument 1 of 'int WiFiClass::begin(char*, const char*)' [-fpermissive]

     int begin(char* ssid, const char *passphrase);

         ^

In file included from C:\Users\Marco\Documents\Arduino\libraries\CayenneMQTT\src/CayenneMQTTWiFi.h:25:0,

                 from C:\Users\Marco\Documents\Arduino\GP2YDustWemosCayenne\GP2YDustWemosCayenne.ino:5:

C:\Users\Marco\Documents\Arduino\libraries\CayenneMQTT\src/CayenneMQTTWiFiClient.h:52:19: error: invalid conversion from 'const char*' to 'char*' [-fpermissive]

    WiFi.begin(ssid);

                   ^

In file included from C:\Users\Marco\Documents\Arduino\libraries\CayenneMQTT\src/CayenneMQTTWiFi.h:23:0,

                 from C:\Users\Marco\Documents\Arduino\GP2YDustWemosCayenne\GP2YDustWemosCayenne.ino:5:

C:\Users\Marco\Documents\Arduino\libraries\WiFi\src/WiFi.h:60:9: error:   initializing argument 1 of 'int WiFiClass::begin(char*)' [-fpermissive]

     int begin(char* ssid);

         ^

In file included from C:\Users\Marco\Documents\Arduino\libraries\CayenneMQTT\src/CayenneMQTTWiFi.h:25:0,

                 from C:\Users\Marco\Documents\Arduino\GP2YDustWemosCayenne\GP2YDustWemosCayenne.ino:5:

C:\Users\Marco\Documents\Arduino\libraries\CayenneMQTT\src/CayenneMQTTWiFiClient.h:41:7: warning: unused variable 'status' [-Wunused-variable]

   int status = WL_IDLE_STATUS;

       ^

In file included from C:\Users\Marco\Documents\Arduino\libraries\CayenneMQTT\src/CayenneMQTTWiFiClient.h:21:0,

                 from C:\Users\Marco\Documents\Arduino\libraries\CayenneMQTT\src/CayenneMQTTWiFi.h:25,

                 from C:\Users\Marco\Documents\Arduino\GP2YDustWemosCayenne\GP2YDustWemosCayenne.ino:5:

C:\Users\Marco\Documents\Arduino\libraries\CayenneMQTT\src/CayenneArduinoMQTTClient.h: In instantiation of 'static void CayenneArduinoMQTTClient::publishData(CayenneTopic, unsigned int, const T&, const char*, const char*) [with T = const __FlashStringHelper*; CayenneTopic = CayenneTopic]':

C:\Users\Marco\Documents\Arduino\libraries\CayenneMQTT\src/CayenneArduinoMQTTClient.h:125:66:   required from here

C:\Users\Marco\Documents\Arduino\libraries\CayenneMQTT\src/CayenneArduinoMQTTClient.h:333:3: error: call of overloaded 'add(const char*&, const __FlashStringHelper* const&)' is ambiguous

   values.add(subkey, data);

   ^

C:\Users\Marco\Documents\Arduino\libraries\CayenneMQTT\src/CayenneArduinoMQTTClient.h:333:3: note: candidates are:

In file included from C:\Users\Marco\Documents\Arduino\libraries\CayenneMQTT\src/CayenneMQTTClient/CayenneMQTTClient.h:24:0,

                 from C:\Users\Marco\Documents\Arduino\libraries\CayenneMQTT\src/CayenneMessage.h:32,

                 from C:\Users\Marco\Documents\Arduino\libraries\CayenneMQTT\src/CayenneHandlers.h:29,

                 from C:\Users\Marco\Documents\Arduino\libraries\CayenneMQTT\src/CayenneArduinoDefines.h:128,

                 from C:\Users\Marco\Documents\Arduino\libraries\CayenneMQTT\src/CayenneArduinoMQTTClient.h:21,

                 from C:\Users\Marco\Documents\Arduino\libraries\CayenneMQTT\src/CayenneMQTTWiFiClient.h:21,

                 from C:\Users\Marco\Documents\Arduino\libraries\CayenneMQTT\src/CayenneMQTTWiFi.h:25,

                 from C:\Users\Marco\Documents\Arduino\GP2YDustWemosCayenne\GP2YDustWemosCayenne.ino:5:

C:\Users\Marco\Documents\Arduino\libraries\CayenneMQTT\src/CayenneMQTTClient/../CayenneUtils/CayenneDataArray.h:106:15: note: void CayenneMQTT::DataArray<BUFFER_SIZE, MAX_VALUES>::add(const char*, int) [with int BUFFER_SIZE = 64; int MAX_VALUES = 4] <near match>

   inline void add(const char* unit, const int value) {

               ^

C:\Users\Marco\Documents\Arduino\libraries\CayenneMQTT\src/CayenneMQTTClient/../CayenneUtils/CayenneDataArray.h:106:15: note:   no known conversion for argument 2 from 'const __FlashStringHelper* const' to 'int'

C:\Users\Marco\Documents\Arduino\libraries\CayenneMQTT\src/CayenneMQTTClient/../CayenneUtils/CayenneDataArray.h:121:15: note: void CayenneMQTT::DataArray<BUFFER_SIZE, MAX_VALUES>::add(const char*, unsigned int) [with int BUFFER_SIZE = 64; int MAX_VALUES = 4] <near match>

   inline void add(const char* unit, const unsigned int value) {

               ^

C:\Users\Marco\Documents\Arduino\libraries\CayenneMQTT\src/CayenneMQTTClient/../CayenneUtils/CayenneDataArray.h:121:15: note:   no known conversion for argument 2 from 'const __FlashStringHelper* const' to 'unsigned int'

C:\Users\Marco\Documents\Arduino\libraries\CayenneMQTT\src/CayenneMQTTClient/../CayenneUtils/CayenneDataArray.h:136:15: note: void CayenneMQTT::DataArray<BUFFER_SIZE, MAX_VALUES>::add(const char*, long int) [with int BUFFER_SIZE = 64; int MAX_VALUES = 4] <near match>

   inline void add(const char* unit, const long value) {

               ^

C:\Users\Marco\Documents\Arduino\libraries\CayenneMQTT\src/CayenneMQTTClient/../CayenneUtils/CayenneDataArray.h:136:15: note:   no known conversion for argument 2 from 'const __FlashStringHelper* const' to 'long int'

C:\Users\Marco\Documents\Arduino\libraries\CayenneMQTT\src/CayenneMQTTClient/../CayenneUtils/CayenneDataArray.h:151:15: note: void CayenneMQTT::DataArray<BUFFER_SIZE, MAX_VALUES>::add(const char*, long unsigned int) [with int BUFFER_SIZE = 64; int MAX_VALUES = 4] <near match>

   inline void add(const char* unit, const unsigned long value) {

               ^

C:\Users\Marco\Documents\Arduino\libraries\CayenneMQTT\src/CayenneMQTTClient/../CayenneUtils/CayenneDataArray.h:151:15: note:   no known conversion for argument 2 from 'const __FlashStringHelper* const' to 'long unsigned int'

In file included from C:\Users\Marco\Documents\Arduino\libraries\CayenneMQTT\src/CayenneMQTTWiFiClient.h:21:0,

                 from C:\Users\Marco\Documents\Arduino\libraries\CayenneMQTT\src/CayenneMQTTWiFi.h:25,

                 from C:\Users\Marco\Documents\Arduino\GP2YDustWemosCayenne\GP2YDustWemosCayenne.ino:5:

C:\Users\Marco\Documents\Arduino\libraries\CayenneMQTT\src/CayenneArduinoMQTTClient.h: In instantiation of 'static void CayenneArduinoMQTTClient::publishData(CayenneTopic, unsigned int, const T&, const __FlashStringHelper*, const __FlashStringHelper*) [with T = float; CayenneTopic = CayenneTopic]':

C:\Users\Marco\Documents\Arduino\libraries\CayenneMQTT\src/CayenneArduinoMQTTClient.h:159:52:   required from 'void CayenneArduinoMQTTClient::virtualWrite(unsigned int, const T&, const __FlashStringHelper*, const __FlashStringHelper*) [with T = float]'

C:\Users\Marco\Documents\Arduino\libraries\CayenneMQTT\src/CayenneArduinoMQTTClient.h:221:68:   required from here

C:\Users\Marco\Documents\Arduino\libraries\CayenneMQTT\src/CayenneArduinoMQTTClient.h:349:3: error: no matching function for call to 'CayenneMQTT::DataArray<>::add(const __FlashStringHelper*&, const float&)'

   values.add(subkey, data);

   ^

C:\Users\Marco\Documents\Arduino\libraries\CayenneMQTT\src/CayenneArduinoMQTTClient.h:349:3: note: candidates are:

In file included from C:\Users\Marco\Documents\Arduino\libraries\CayenneMQTT\src/CayenneMQTTClient/CayenneMQTTClient.h:24:0,

                 from C:\Users\Marco\Documents\Arduino\libraries\CayenneMQTT\src/CayenneMessage.h:32,

                 from C:\Users\Marco\Documents\Arduino\libraries\CayenneMQTT\src/CayenneHandlers.h:29,

                 from C:\Users\Marco\Documents\Arduino\libraries\CayenneMQTT\src/CayenneArduinoDefines.h:128,

                 from C:\Users\Marco\Documents\Arduino\libraries\CayenneMQTT\src/CayenneArduinoMQTTClient.h:21,

                 from C:\Users\Marco\Documents\Arduino\libraries\CayenneMQTT\src/CayenneMQTTWiFiClient.h:21,

                 from C:\Users\Marco\Documents\Arduino\libraries\CayenneMQTT\src/CayenneMQTTWiFi.h:25,

                 from C:\Users\Marco\Documents\Arduino\GP2YDustWemosCayenne\GP2YDustWemosCayenne.ino:5:

C:\Users\Marco\Documents\Arduino\libraries\CayenneMQTT\src/CayenneMQTTClient/../CayenneUtils/CayenneDataArray.h:65:8: note: void CayenneMQTT::DataArray<BUFFER_SIZE, MAX_VALUES>::add(const char*, const char*, bool, bool) [with int BUFFER_SIZE = 64; int MAX_VALUES = 4]

   void add(const char* unit, const char* value, bool unitInFlash = false, bool valueInFlash = false) {

        ^

C:\Users\Marco\Documents\Arduino\libraries\CayenneMQTT\src/CayenneMQTTClient/../CayenneUtils/CayenneDataArray.h:65:8: note:   no known conversion for argument 1 from 'const __FlashStringHelper*' to 'const char*'

C:\Users\Marco\Documents\Arduino\libraries\CayenneMQTT\src/CayenneMQTTClient/../CayenneUtils/CayenneDataArray.h:106:15: note: void CayenneMQTT::DataArray<BUFFER_SIZE, MAX_VALUES>::add(const char*, int) [with int BUFFER_SIZE = 64; int MAX_VALUES = 4]

   inline void add(const char* unit, const int value) {

               ^

C:\Users\Marco\Documents\Arduino\libraries\CayenneMQTT\src/CayenneMQTTClient/../CayenneUtils/CayenneDataArray.h:106:15: note:   no known conversion for argument 1 from 'const __FlashStringHelper*' to 'const char*'

C:\Users\Marco\Documents\Arduino\libraries\CayenneMQTT\src/CayenneMQTTClient/../CayenneUtils/CayenneDataArray.h:121:15: note: void CayenneMQTT::DataArray<BUFFER_SIZE, MAX_VALUES>::add(const char*, unsigned int) [with int BUFFER_SIZE = 64; int MAX_VALUES = 4]

   inline void add(const char* unit, const unsigned int value) {

               ^

Multiple libraries were found for "WiFi.h"
 Used: C:\Users\Marco\Documents\Arduino\libraries\WiFi
C:\Users\Marco\Documents\Arduino\libraries\CayenneMQTT\src/CayenneMQTTClient/../CayenneUtils/CayenneDataArray.h:121:15: note:   no known conversion for argument 1 from 'const __FlashStringHelper*' to 'const char*'

 Not used: C:\Program Files (x86)\Arduino\libraries\WiFi
C:\Users\Marco\Documents\Arduino\libraries\CayenneMQTT\src/CayenneMQTTClient/../CayenneUtils/CayenneDataArray.h:136:15: note: void CayenneMQTT::DataArray<BUFFER_SIZE, MAX_VALUES>::add(const char*, long int) [with int BUFFER_SIZE = 64; int MAX_VALUES = 4]

   inline void add(const char* unit, const long value) {

               ^

C:\Users\Marco\Documents\Arduino\libraries\CayenneMQTT\src/CayenneMQTTClient/../CayenneUtils/CayenneDataArray.h:136:15: note:   no known conversion for argument 1 from 'const __FlashStringHelper*' to 'const char*'

C:\Users\Marco\Documents\Arduino\libraries\CayenneMQTT\src/CayenneMQTTClient/../CayenneUtils/CayenneDataArray.h:151:15: note: void CayenneMQTT::DataArray<BUFFER_SIZE, MAX_VALUES>::add(const char*, long unsigned int) [with int BUFFER_SIZE = 64; int MAX_VALUES = 4]

   inline void add(const char* unit, const unsigned long value) {

               ^

C:\Users\Marco\Documents\Arduino\libraries\CayenneMQTT\src/CayenneMQTTClient/../CayenneUtils/CayenneDataArray.h:151:15: note:   no known conversion for argument 1 from 'const __FlashStringHelper*' to 'const char*'

C:\Users\Marco\Documents\Arduino\libraries\CayenneMQTT\src/CayenneMQTTClient/../CayenneUtils/CayenneDataArray.h:190:15: note: void CayenneMQTT::DataArray<BUFFER_SIZE, MAX_VALUES>::add(const char*, float) [with int BUFFER_SIZE = 64; int MAX_VALUES = 4]

   inline void add(const char* unit, const float value) {

               ^

C:\Users\Marco\Documents\Arduino\libraries\CayenneMQTT\src/CayenneMQTTClient/../CayenneUtils/CayenneDataArray.h:190:15: note:   no known conversion for argument 1 from 'const __FlashStringHelper*' to 'const char*'

C:\Users\Marco\Documents\Arduino\libraries\CayenneMQTT\src/CayenneMQTTClient/../CayenneUtils/CayenneDataArray.h:201:15: note: void CayenneMQTT::DataArray<BUFFER_SIZE, MAX_VALUES>::add(const char*, double) [with int BUFFER_SIZE = 64; int MAX_VALUES = 4]

   inline void add(const char* unit, const double value) {

               ^

C:\Users\Marco\Documents\Arduino\libraries\CayenneMQTT\src/CayenneMQTTClient/../CayenneUtils/CayenneDataArray.h:201:15: note:   no known conversion for argument 1 from 'const __FlashStringHelper*' to 'const char*'

Using library CayenneMQTT at version 1.0.1 in folder: C:\Users\Marco\Documents\Arduino\libraries\CayenneMQTT
Using library WiFi at version 1.2.6 in folder: C:\Users\Marco\Documents\Arduino\libraries\WiFi
Using library SPI at version 1.0 in folder: C:\Users\Marco\AppData\Local\Arduino15\packages\esp8266\hardware\esp8266\2.3.0\libraries\SPI
exit status 1
Error compiling for board WeMos D1 R2 & mini.

Is this the right example for this tis combination?

marco_rudolph · January 1, 2019, 11:33pm

Well I guess not…

So, my question now: is there a example code for the Sharp dust sensor and Wemos D1 mini combination?

Thank you!

shramik_salgaonkar · January 2, 2019, 10:26am

you need to use this connection example code https://github.com/myDevicesIoT/Cayenne-MQTT-Arduino/blob/feature/gsm-support/examples/Connections/ESP8266/ESP8266.ino and add the code of Sharp GP2Y1010AU0F into it.

marco_rudolph · January 2, 2019, 11:57am

Best wishes for 2019 shramik and thanks for the support.

I can upload the code to my device but the serial monitor gives:

[7262] Connecting to mqtt.mydevices.com:1883
[14156] Network connect failed
[21231] Network connect failed
[29405] Network connect failed
[36580] Network connect failed
[44654] Network connect failed

My first thought was check the router but I can’t see that it’s blocking port 1883?

shramik_salgaonkar · January 2, 2019, 12:00pm

Happy new year @marco_rudolph

possibility is some network firewall is blocking traffic to mqtt.mydevices.com or port 1883.

marco_rudolph · January 2, 2019, 4:50pm

Yes, although I have not found it yet, it has to be something in my router. If set my mobile as an AP I get a connect immediately according to the serial monitor.

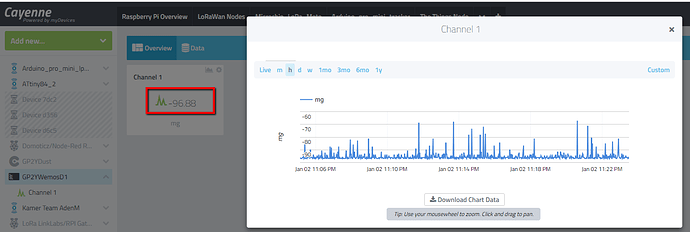

In Cayenne I do not yet see a widget but still the message:
Waiting for board to connect …

shramik_salgaonkar · January 2, 2019, 4:53pm

add #define CAYENNE_DEBUG in your code and share the serial monitor output here.

marco_rudolph · January 2, 2019, 9:26pm

[8053] Publish: topic 1, channel 0, value 8053, subkey , key
[8193] Publish: topic 1, channel 1, value -96.879, subkey mg, key pm
[9325] Publish: topic 1, channel 0, value 9325, subkey , key
[9482] Publish: topic 1, channel 1, value -96.099, subkey mg, key pm
[10616] Publish: topic 1, channel 0, value 10616, subkey , key
[10764] Publish: topic 1, channel 1, value -96.099, subkey mg, key pm
[11897] Publish: topic 1, channel 0, value 11897, subkey , key
[12046] Publish: topic 1, channel 1, value -96.879, subkey mg, key pm
[13177] Publish: topic 1, channel 0, value 13177, subkey , key
[13349] Publish: topic 1, channel 1, value -96.099, subkey mg, key pm
[14541] Publish: topic 1, channel 0, value 14541, subkey , key
[14736] Publish: topic 1, channel 1, value -96.099, subkey mg, key pm
[15908] Publish: topic 1, channel 0, value 15908, subkey , key
[16056] Publish: topic 1, channel 1, value -96.099, subkey mg, key pm
[17312] Publish: topic 1, channel 0, value 17311, subkey , key
[17530] Publish: topic 1, channel 1, value -96.879, subkey mg, key pm
[18728] Connection ok
[18728] Publish: topic 1, channel 0, value 18728, subkey , key
[19676] Publish: topic 1, channel 1, value -96.879, subkey mg, key pm
[20816] Publish: topic 1, channel 0, value 20816, subkey , key
[20974] Publish: topic 1, channel 1, value -96.879, subkey mg, key pm
[22106] Publish: topic 1, channel 0, value 22106, subkey , key
[22257] Publish: topic 1, channel 1, value -96.879, subkey mg, key pm
[23390] Publish: topic 1, channel 0, value 23389, subkey , key
[23533] Publish: topic 1, channel 1, value -96.879, subkey mg, key pm
[24665] Publish: topic 1, channel 0, value 24665, subkey , key
[24818] Publish: topic 1, channel 1, value -96.879, subkey mg, key pm
[25945] Publish: topic 1, channel 0, value 25945, subkey , key
[26097] Publish: topic 1, channel 1, value -96.879, subkey mg, key pm
[27227] Publish: topic 1, channel 0, value 27227, subkey , key
[27378] Publish: topic 1, channel 1, value -96.879, subkey mg, key pm
[28506] Publish: topic 1, channel 0, value 28505, subkey , key
[28716] Publish: topic 1, channel 1, value -94.538, subkey mg, key pm
[29921] Connection ok

marco_rudolph · January 2, 2019, 9:30pm

// Publish data every 1 seconds (1000 milliseconds). Change this value to publish at a different interval.
if (millis() - lastMillis > 1000) {
lastMillis = millis();
//Write data to Cayenne here. This example just sends the current uptime in milliseconds
Cayenne.virtualWrite(0, lastMillis);

I’m a bit further. I have removed this section above and now you can see the widget … now find out why I get a negative value

Here is my code:

#define CAYENNE_DEBUG
#define CAYENNE_PRINT Serial
#include <CayenneMQTTESP8266.h>

// WiFi network info.
char ssid[] = "******";
char wifiPassword[] = "******";

// Cayenne authentication info. This should be obtained from the Cayenne Dashboard.
char username[] = "************";
char password[] = "***********";
char clientID[] = "***********";

unsigned long lastMillis = 0;

int measuringPin = A0;
int ledPin = 2;
const int timeMeasuring = 280;
const int timeStabilization = 40;
const int timeSleep = 9680;
float voltageAnalog = 0;
float voltageConversion = 0;
float dustiness = 0;

void setup() {
  Serial.begin(9600);
  Cayenne.begin(username, password, clientID, ssid, wifiPassword);
  pinMode(ledPin,OUTPUT);
}

void loop() {
  Cayenne.loop();
     digitalWrite(ledPin,LOW);
    delayMicroseconds(timeMeasuring);
    voltageAnalog = analogRead(measuringPin);
    delayMicroseconds(timeStabilization);
    digitalWrite(ledPin,HIGH);
    delayMicroseconds(timeSleep);
    voltageConversion = voltageAnalog * (4.7 / 1024.0);  //Voltage on 5V pin on Arduino, My voltage is 4.7 V
    dustiness = (0.17 * voltageConversion - 0.1)*1000;
    Cayenne.virtualWrite(1, dustiness, "pm", "mg");
}

shramik_salgaonkar · January 3, 2019, 11:08am

you need to come a bit back, as you will hit the rate limit. Have a look at this topic Sending MQTT messages within rate limits

follow this tutorial and first get the correct reading from the sensor Wemos and dust sensor example - esp8266 learning

marco_rudolph · January 3, 2019, 7:31pm

@shramik_salgaonkar, that’s it!

I’ve modified the code and widgets and now I see the values according to the Sharp GP2Y1010AU0F Dust density chart in my dashboard.

Here is the final code for the Sharp GP2Y1010AU0F with Wemos D1 MIni and CayenneMQtt:

#define CAYENNE_DEBUG
#define CAYENNE_PRINT Serial
#include <CayenneMQTTESP8266.h>

// WiFi network info.
char ssid[] = "******";
char wifiPassword[] = "*****";

// Cayenne authentication info. This should be obtained from the Cayenne Dashboard.
char username[] = "*************";   //Cayenne MQTT Username
char password[] = "*************";   // Cayenne MQTT PassWord
char clientID[] = "*************";      // Client ID

unsigned long lastMillis = 0;

int measuringPin = A0;
int ledPin = D2;

float voltsMeasured = 0;
float calcVoltage = 0;
float dustDensity = 0;

void setup()
{
  Serial.begin(9600);
  Cayenne.begin(username, password, clientID, ssid, wifiPassword);
  pinMode(ledPin, OUTPUT);
}

void loop()
{
  Cayenne.loop();

  //Publish data every 10 seconds (10000 milliseconds). Change this value to publish at a different interval.
  if (millis() - lastMillis > 5000)
  {
    lastMillis = millis();

    digitalWrite(ledPin, LOW);
    delayMicroseconds(280);

    voltsMeasured = analogRead(measuringPin);

    delayMicroseconds(40);
    digitalWrite(ledPin, HIGH);
    delayMicroseconds(9680);

    calcVoltage = voltsMeasured * (4.7 / 1024.0); //Voltage on 5V pin on Arduino, My voltage is 4.7 V
    dustDensity = (0.17 * calcVoltage - 0.1);
    Cayenne.virtualWrite(0,calcVoltage, "V");
    Cayenne.virtualWrite(1, dustDensity, "mg");

  }
}

No Smoke

Full Smoke

Thanks for that push in the right direction

shramik_salgaonkar · January 4, 2019, 2:36pm

Glad to hear to hear it is working and thanks for sharing the code.

marco_rudolph · February 27, 2019, 7:15pm

Just for fun, I’ve added a RGB Led and a DHT temperature/humidity sensor to this setup…maybe a basic recipe as inspiration for someone else…

the code:

#include <CayenneMQTTESP8266.h>
#include <DHT.h>
#define CAYENNE_DEBUG
#define CAYENNE_PRINT Serial
#define DHTTYPE DHT11
#define DHTPIN D5 //GPIO 14 or D5, D6 (gpio12) or D7 (gpio13)

DHT dht(DHTPIN, DHTTYPE); //Initialize DHT sensor

// WiFi network info.
char ssid[] = "******";
char wifiPassword[] = "******";

// Cayenne authentication info. This should be obtained from the Cayenne Dashboard.
char username[] = "*************";     //Cayenne MQTT Username
char password[] = "*************"; // Cayenne MQTT PassWord
char clientID[] = "*************";     // Client ID

unsigned long lastMillis = 0;

// GP2Y014AU0F Dust sensor
int measuringPin = A0;
int ledPin = D2;

float voltsMeasured = 0;
float calcVoltage = 0;
float dustDensity = 0;

//RGB
const int red = D6;
const int green = D7;
const int blue = D8;

void setup()
{
  Serial.begin(9600);
  Cayenne.begin(username, password, clientID, ssid, wifiPassword);
  pinMode(ledPin, OUTPUT);

  // DHT
  Serial.begin(115200);
  Serial.println("DHTxx test!");
  dht.begin();

  //RGB
  pinMode(red, OUTPUT);
  pinMode(green, OUTPUT);
  pinMode(blue, OUTPUT);

}

void loop()
{
  Cayenne.loop();

  // Wait a few seconds between measurements.
  delay(5000);

  // Reading temperature or humidity takes about 250 milliseconds!
  // Sensor readings may also be up to 2 seconds 'old' (its a very slow sensor)
  float h = dht.readHumidity();
  // Read temperature as Celsius (the default)
  float t = dht.readTemperature();
  // Read temperature as Fahrenheit (isFahrenheit = true)
  float f = dht.readTemperature(true);

  // Check if any reads failed and exit early (to try again).
  if (isnan(h) || isnan(t) || isnan(f))
  {
    Serial.println("Failed to read from DHT sensor!");
    return;
  }

  // Compute heat index in Fahrenheit (the default)
  // float hif = dht.computeHeatIndex(f, h);
  // Compute heat index in Celsius (isFahreheit = false)
  // float hic = dht.computeHeatIndex(t, h, false);


//For testing
  Serial.print("Humidity: ");
  Serial.print(h);
  Serial.print(" %\t");
  Serial.print("Temperature: ");
  Serial.print(t);
  Serial.print(" C\t");
  // Serial.print(f);
  // Serial.print(" *F\t");
  // Serial.print("Heat index: ");
  // Serial.print(hic);
  // Serial.print(" *C ");
  // Serial.print(hif);
  // Serial.println(" *F");

  digitalWrite(red, LOW);
  digitalWrite(green, LOW);
  digitalWrite(blue, LOW);

  // Channel 4.
  if (t < 16)
  {
    digitalWrite(blue, HIGH);
    digitalWrite(green, LOW);
    digitalWrite(red, LOW);
    Cayenne.virtualWrite(4, HIGH, "digital_sensor", "d");
  }
  else
  {
    digitalWrite(blue, LOW);
    Cayenne.virtualWrite(4, LOW, "digital_sensor", "d");
  }

  // Channel 5.
  if ((t > 16 && t < 22) && (calcVoltage <= 1.0))
  {
    digitalWrite(green, HIGH);
    Cayenne.virtualWrite(5, HIGH, "digital_sensor", "d");
  }
    else
  {
    digitalWrite(green, LOW);
    Cayenne.virtualWrite(5, LOW, "digital_sensor", "d");
  }

  // Channel 6.
  if ((t > 25) || (calcVoltage > 1.5))
  {
    digitalWrite(red, HIGH);
    Cayenne.virtualWrite(6, HIGH, "digital_sensor", "d");
  }
    else
  {
    digitalWrite(red, LOW);
    Cayenne.virtualWrite(6, LOW, "digital_sensor", "d");
  }

  //Publish data every 10 seconds (10000 milliseconds). Change this value to publish at a different interval.
  if (millis() - lastMillis > 5000)
  {
    lastMillis = millis();

    digitalWrite(ledPin, LOW);
    delayMicroseconds(280);

    voltsMeasured = analogRead(measuringPin);

    delayMicroseconds(40);
    digitalWrite(ledPin, HIGH);
    delayMicroseconds(9680);

    Serial.print("Output Voltage: ");
    Serial.print(calcVoltage);
    Serial.print(" V\t");
    Serial.print("Dust density: ");
    Serial.print(dustDensity);
    Serial.print(" mg/m3\r");
    Serial.println();

    calcVoltage = voltsMeasured * (4.7 / 1024.0); //Voltage on 5V pin on Arduino, Voltage Wemos D1 Mini is 4.7 V
    dustDensity = (0.17 * calcVoltage - 0.1);
    Cayenne.virtualWrite(0, calcVoltage, "voltage", "v");
    Cayenne.virtualWrite(1, dustDensity, "pm", "mg");
    Cayenne.virtualWrite(2, h, "rel_hum", "p");
    Cayenne.virtualWrite(3, t, "temp", "c");
    //Cayenne.virtualWrite(4, blue, "digital_sensor", "d");
    //Cayenne.virtualWrite(5, green, "digital_sensor", "d");
    //Cayenne.virtualWrite(6, red, "digital_sensor", "d");

  }
}

shramik_salgaonkar · February 28, 2019, 10:53am

thanks for sharing @marco_rudolph.

alexparker · August 20, 2019, 6:06am

Nice
